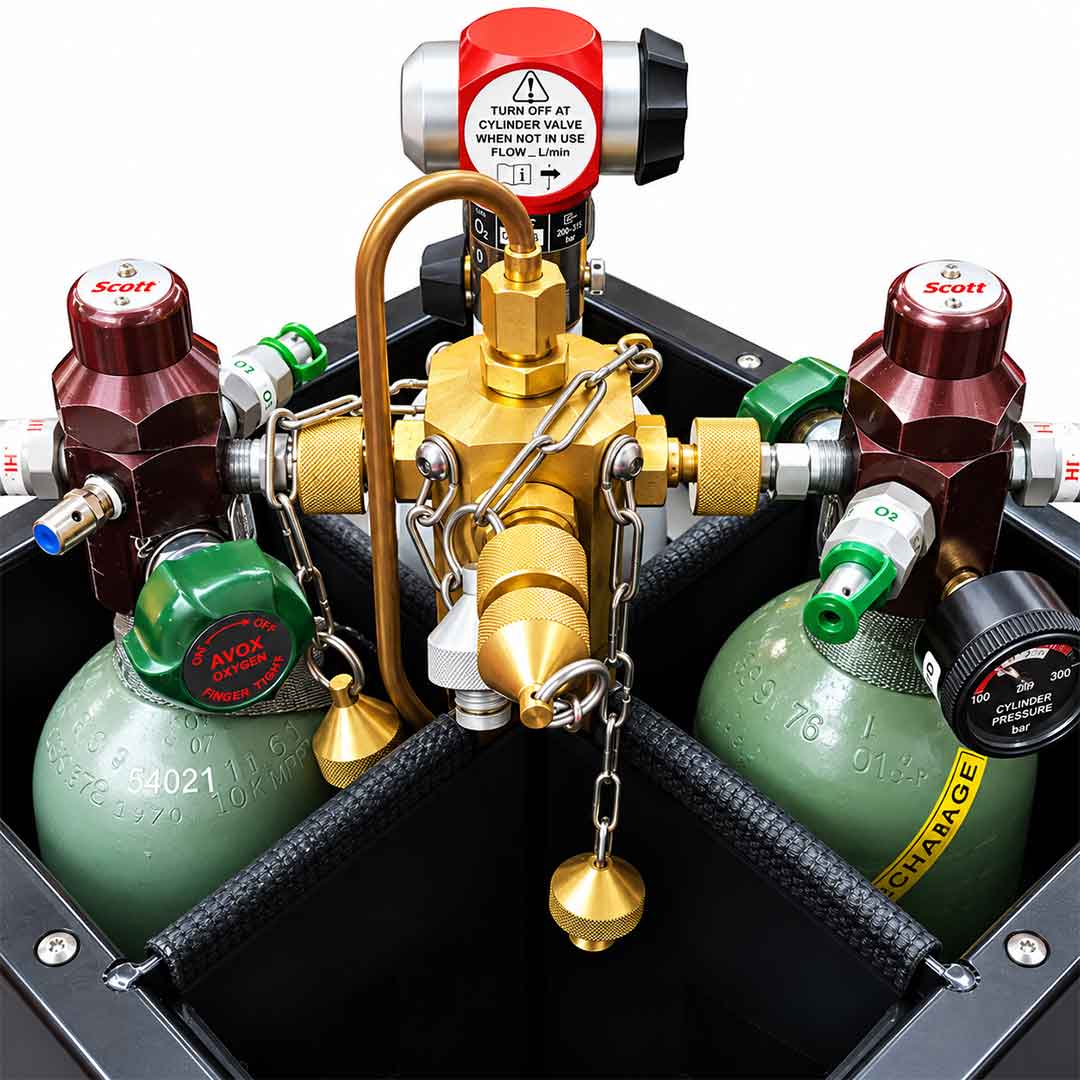

Oxygen Charging Rig - Therapy Cylinder (4 x Sabre Elite) Charging points & manifold with relief valve
For aircraft oxygen charging
Purpose-built oxygen charging equipment configured for 4 Sabre Elite Therapy Cylinders, supporting organised and efficient aircraft servicing.
- Central charging manifold
- Finger-tight charging connections
- Safety relief valve, PED compliant
ART.NR 800.010.00
Oxygen Charging Rig - Therapy Cylinder (4 x Sabre Elite) Charging points & manifold with relief valve
Purpose-built oxygen charging equipment configured for 4 Sabre Elite Therapy Cylinders, supporting organised and efficient aircraft servicing.
Oxygen Charging Rig - Therapy Cylinder - 4 x Sabre Elite
This Semmco oxygen therapy cylinder charging rig is designed for charging or topping up one to four passenger oxygen therapy cylinders in a four Sabre/BE cylinder configuration.
The charging cabinet is designed as a containment unit so that, in the event of a sudden gas release from a cylinder burst disc, released oxygen can be directed through the cabinet vent openings.
The therapy cylinders connect to the charging manifold using finger-tight connections. The inlet charging point has a 1/4 BSP left-hand thread with a sintered filter. Maximum charging pressure is 1,800 psi, with a safety relief valve incorporated into the system.
